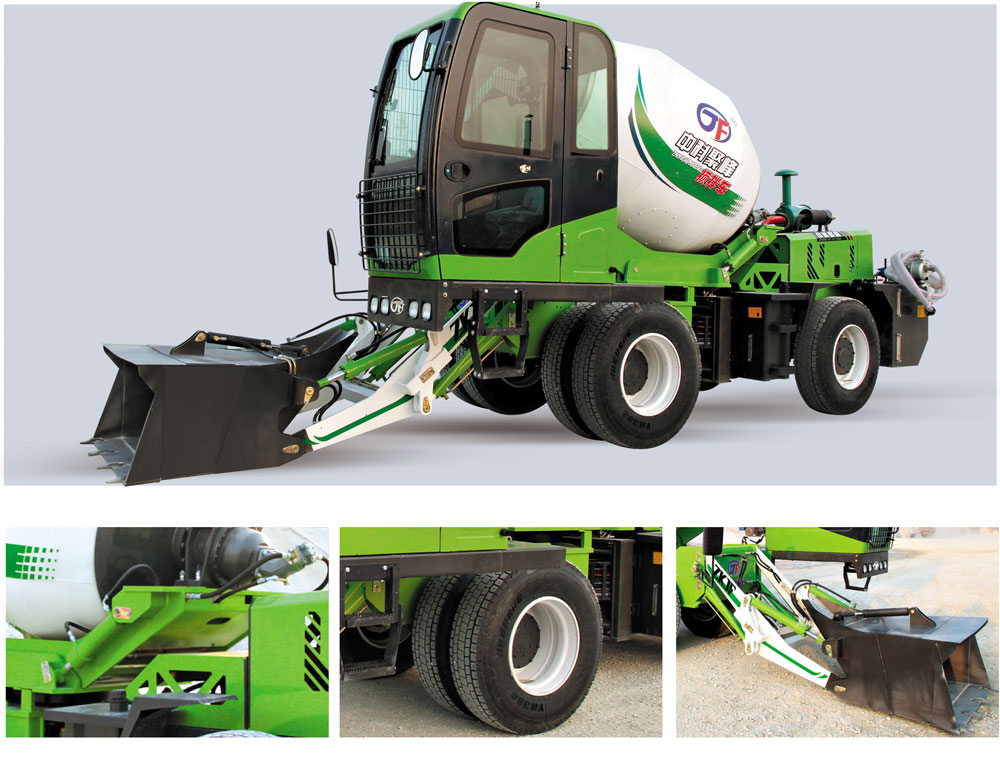

The main related structures of concrete mixer truck are walking chassis, engine, hydraulic torque converter, double drive axle, feeding device, feeding hopper, discharging hopper, extended discharging hopper, frame, mixing bucket and mixing are all slower. Let's take a closer look at the machinery, hydraulic system, electronic control system, automatic water supply system, etc.

1.進水系統可根據稱重設置實現自動進水。

1. The water inlet system can automatically feed water according to the weighing setting.

混合滾筒的旋轉由液壓馬達通過特殊的行星齒輪驅動。行星齒輪的輸出軸可以以恒定的角度擺動，以適應惡劣路況下攪拌鼓的節拍。

The rotation of the mixing drum is driven by a hydraulic motor through a special planetary gear. The output shaft of the planetary gear can swing at a constant angle to adapt to the beat of the drum under bad road conditions.

雙螺旋葉片布置在混凝土攪拌運輸車的攪拌筒的內壁上，正向旋轉進料和混凝土攪拌，反向旋轉的混凝土在螺旋葉片的壓力下從出口排出。

The double spiral blades are arranged on the inner wall of the mixing cylinder of the concrete mixer truck, and the forward rotating feeding and concrete mixing, and the reverse rotating concrete is discharged from the outlet under the pressure of the spiral blades.

4.供應干物料，根據設計比例自動供應鏟斗臂，動臂油缸和計量料斗。

4. Supply dry materials, automatically supply bucket arm, boom cylinder and metering hopper according to the design proportion.

5.液壓系統使用恒功率可變排量活塞泵以減少發動機功率損失。

5. Constant power variable displacement piston pump is used in hydraulic system to reduce power loss of engine.

6.行駛系統由發動機從變矩器以及前后驅動軸驅動到前后軸。變矩器的使用減少了對發動機的影響并延長了發動機的壽命。

6. The driving system is driven by the engine from the torque converter and the front and rear drive shafts to the front and rear axles. The use of the torque converter reduces the impact on the engine and extends the life of the engine.
